What A Glove Scrap Picker

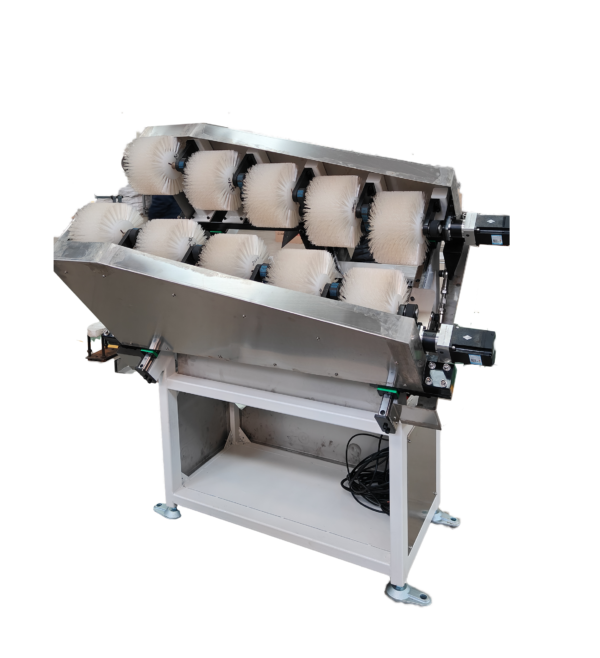

Glove scrap picker is a device to remove gloves stuck in glove formers, using high toughness brush rotation force to brush glove stuck in glove formers.This product is made of programmable logic controller/servo system and high strength frame, stainless steel material, etc. The performance of this equipment is stable and reliable, with excellent removal of gloves stuck in the glove formers.
Glove scrap picker is the latest fully automatic glove scrap picker specially designed for glove manufacturers. When the glove former on the glove production line passes through the glove stacking machine and the glove stripping machine, some gloves on the glove formers still have not been removed.At this time, if it is double-dipped, the raw materials will be contaminated and the gloves produced will be defective. You may need an auto glove scrap picker at this point. Ensure the glove former is clean and contamination-free before second dipping.
Advantages of Fengwang Glove Scrap Picker
- The glove on the hand model is touched by the brush to reduce the damage to the original surface of the hand model.
- The reasonable design ensures the accurate position of the brush, which can effectively remove the gloves from the hand model.
- Long life of the brush.
- The position of the brush is adjustable.
- Set automatic timer.
- Opened and closed by sensor control.
Glove Scrap Picker Safety Instructions
- Before using this product, please read the instructions carefully and ensure that you have fully understood the safety instructions.
- The product is operated by operators who understand and learn the operation process and safety knowledge.
- In the operation process, pay attention to safety awareness, do not put hands, feet, and any other items into the operation of the equipment, so as to avoid danger.
- To repair the product, please turn off the power and air supply, and then repair the product.
- When replacing the brush and disassembling the brush frame, in order to ensure equipment and personal safety, please stop the production line chain before working.
Glove Scrap Picker Maintenance
(1) The guide rail and the slider part/ball screw mechanism need to fill lubricating oil regularly.
(2) Gloves that the rotating part of the brush fails to fall into the collection box shall be collected in time.
(3) The brush with serious wear needs to be replaced in time to avoid affecting the effect of removing gloves.
Glove Scrap Picker Shipped
Each glove scrap picker is packed in a wooden box, the thickness of the board being greater than or equal to 1.2cm, and the bearing capacity is not less than 1 ton. This ensures that the glove scrap picker will not be damaged during transportation due to the box’s insufficient bearing capacity.
To ensure the safety and stability of the glove scrap picker during transportation, buffer materials will be added to the wooden box to avoid the adverse effects of vibration and impact on the glove scrap picker during transportation.
When glove scrap picker is loaded and unloaded, the lifting equipment should be reasonably configured to ensure the reasonable transportation of machinery.
Track and monitor the logistics information after the packing box leaves the factory, and understand the transportation situation in time to ensure that the glove scrap picker can reach the customer smoothly.
- Technical Parameters
- Equipment size and weight:
(1) Equipment length 1400MM x width 1250MM x height 1500MM.
(2) The weight of a single glove scrap picker is 240 kg.
- Control part parameters:
(1) The CPU control unit adopts bus PLC.
(2) HMI adopts touch screen.
(3) The servo drive unit adopts bus servo driver.
(4) The power of a single glove scrap picker is 2.25 kW, and the power supply voltage is 220 volts.
- Air source parameters: The air source pressure is required to be not less than 0.5 mpa.
Glove Scrap Picker Operation Steps
- Preparations:
(1) Check whether the 220 volt power supply is connected to the power supply terminal of the cabinet, and ensure that the voltage is within the normal range.
(2) Check whether the grounding terminal of the fuselage and electrical cabinet has been well grounded to ensure personal and property safety.
(3) Check whether the air source is normal, more than 0.5 mpa.
Glove Scrap Picker Field Case Video
- Run the Glove Scrap Picker: Run the installed device.
(1) If the emergency stop button is pressed, reset the emergency stop button first.
(2) Turn the knob to automatic.
(3) Press the reset button, and the device will automatically return to the original position.
(4) Press the start button, and the device will enter the operation program. When detecting stranded gloves on the glove formers, the device will automatically brush the gloves off.
(5) When an emergency needs to be stopped during operation, press the emergency stop button and the equipment will stop running immediately.
(6) If you need to run the device again, reset it first, then start it, and the device will be put back into the operation program.
(7) Rotate the knob to the manual state, and each part can be operated separately (manual/automatic switch can be operated only after the automatic operation program is finished).
